Biomass and pharmaceutical particle separation cyclone series

Technical description

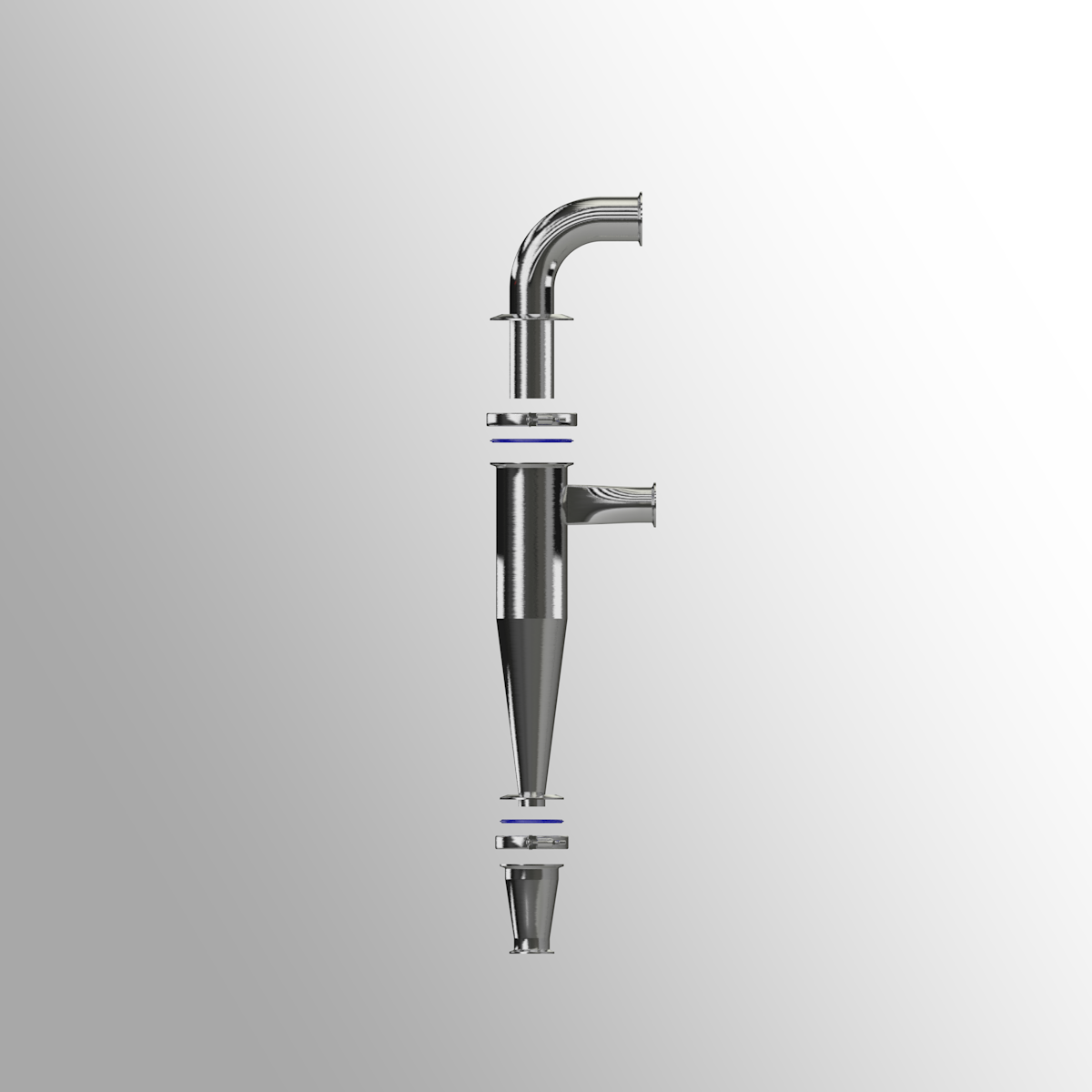

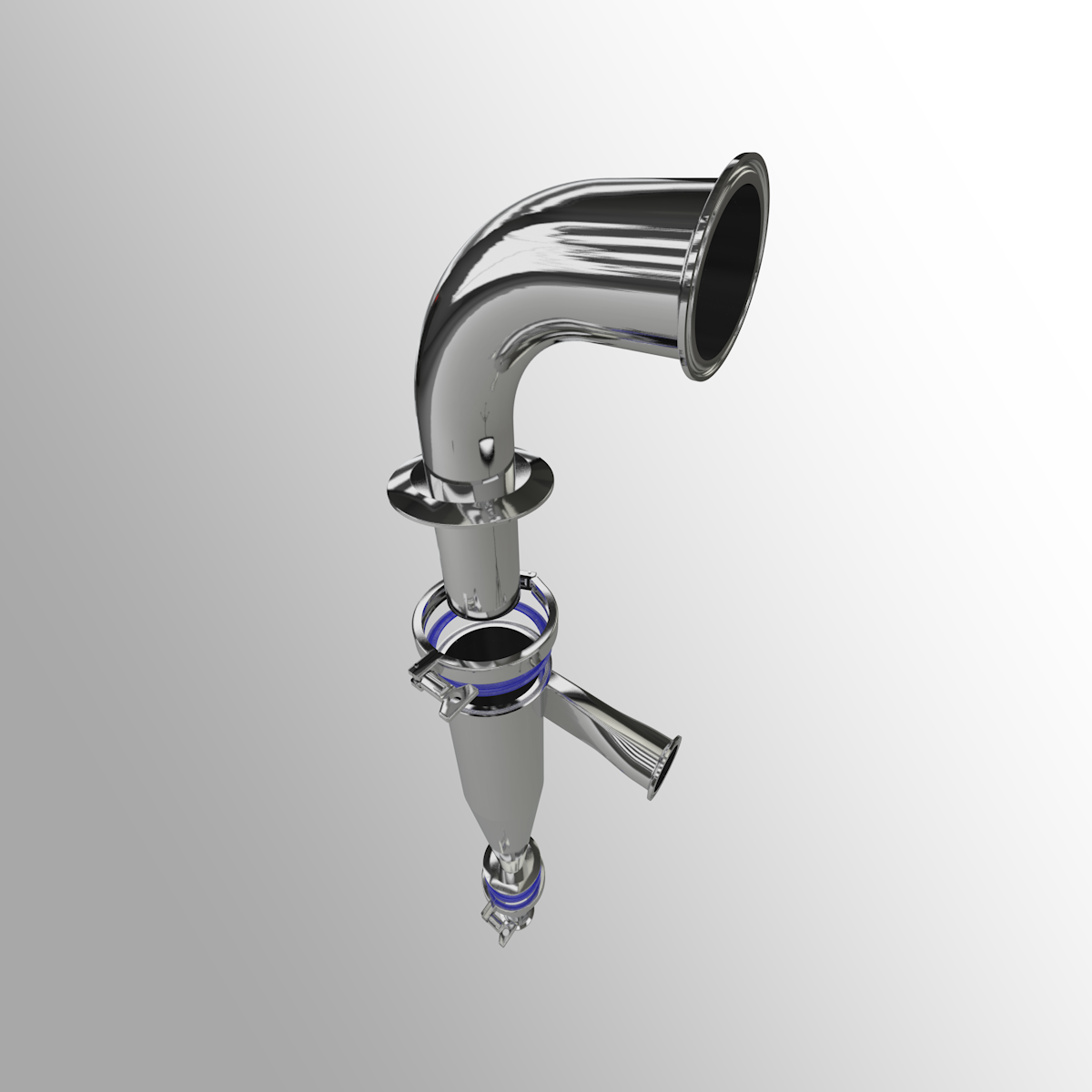

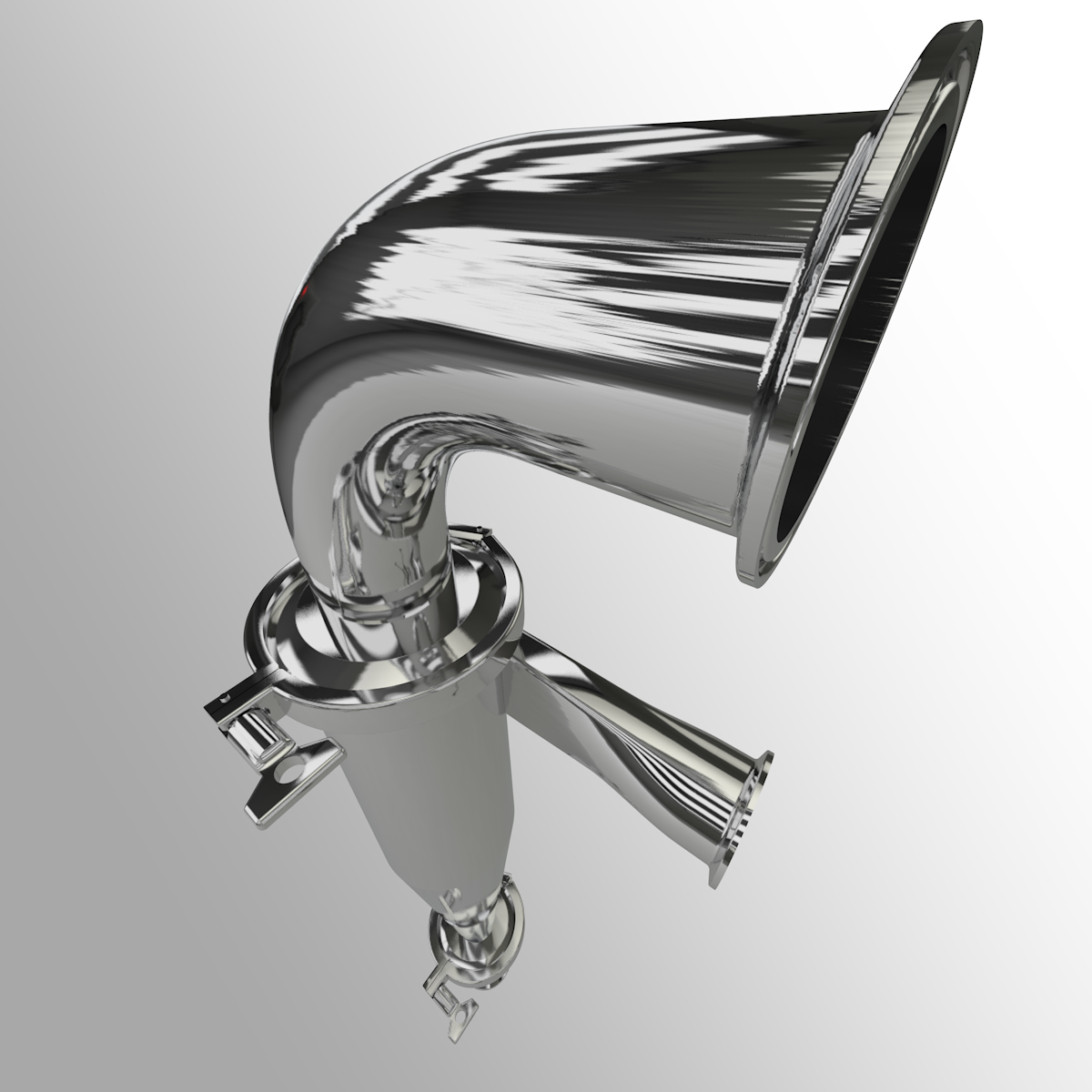

The ALP-S-XXXX Cyclone is specifically designed for the particle separation in biomass and pharmaceutical processes such as compression and encapsulation, typically capturing between 90 – 99.9% of waste powder. Where required, the cyclone can incorporate a manifold for connection to ancillary equipment such as tablet
de-dusters or capsule polishers.

It cyclone is proven to be equally effective in numerous other applications including sachet filling, spray drying, inhalation and any other process where excess dust is extracted. The captured waste material can be used for batch loss reconciliation, or even reintroduced to the
process.

Material: Stainless Steel 316L




Data table

Model ALP-S-01905 ALP-S-02540 ALP-S-03810 ALP-S-05080 ALP-S-06350 ALP-S-10160 ALP-S-15240
Flow rate m3/hr 3.5 - 50 10 - 70 15 - 100 20 - 150 44 - 300 300 - 600 500 - 1200
CFM 2 - 30 6 - 40 9 - 60 12 - 90 26 - 180 180 - 360 300 - 700
Inflow Tube Diameter mm 19.05 25.04 38.1 50.8 63.5 101.6 152.4
in 3/4" 1" 1.5" 2" 3" 4" 6"
Outflow Tube Diameter mm 25.04 38.1 50.8 63.5 101.6 152.4 203.2
in 1" 1.5" 2" 3" 4" 6" 8"

Sample Pharmaceutical Applications

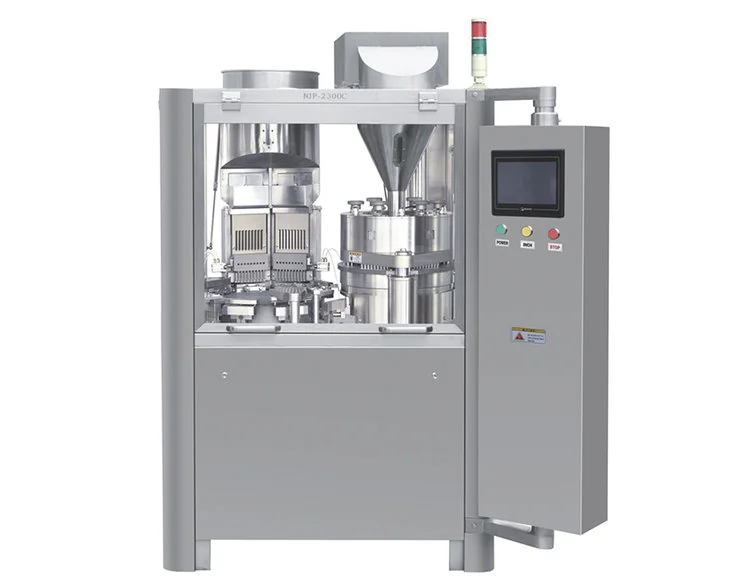

Capsule Filling Machine

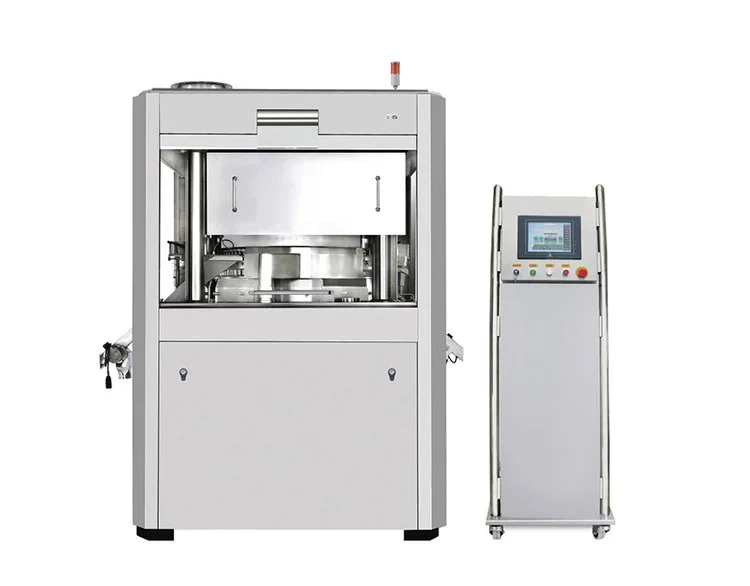

Tablet Press

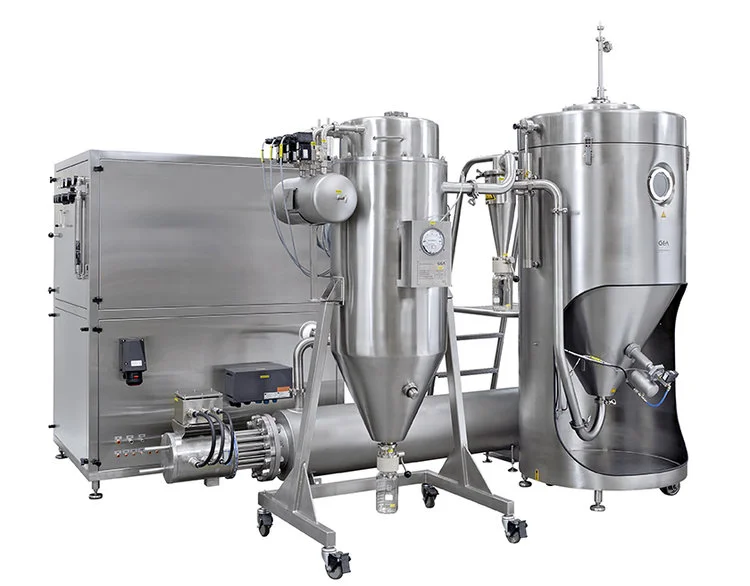

Spray Dryer
