Heat exchanger cyclone series

Technical description

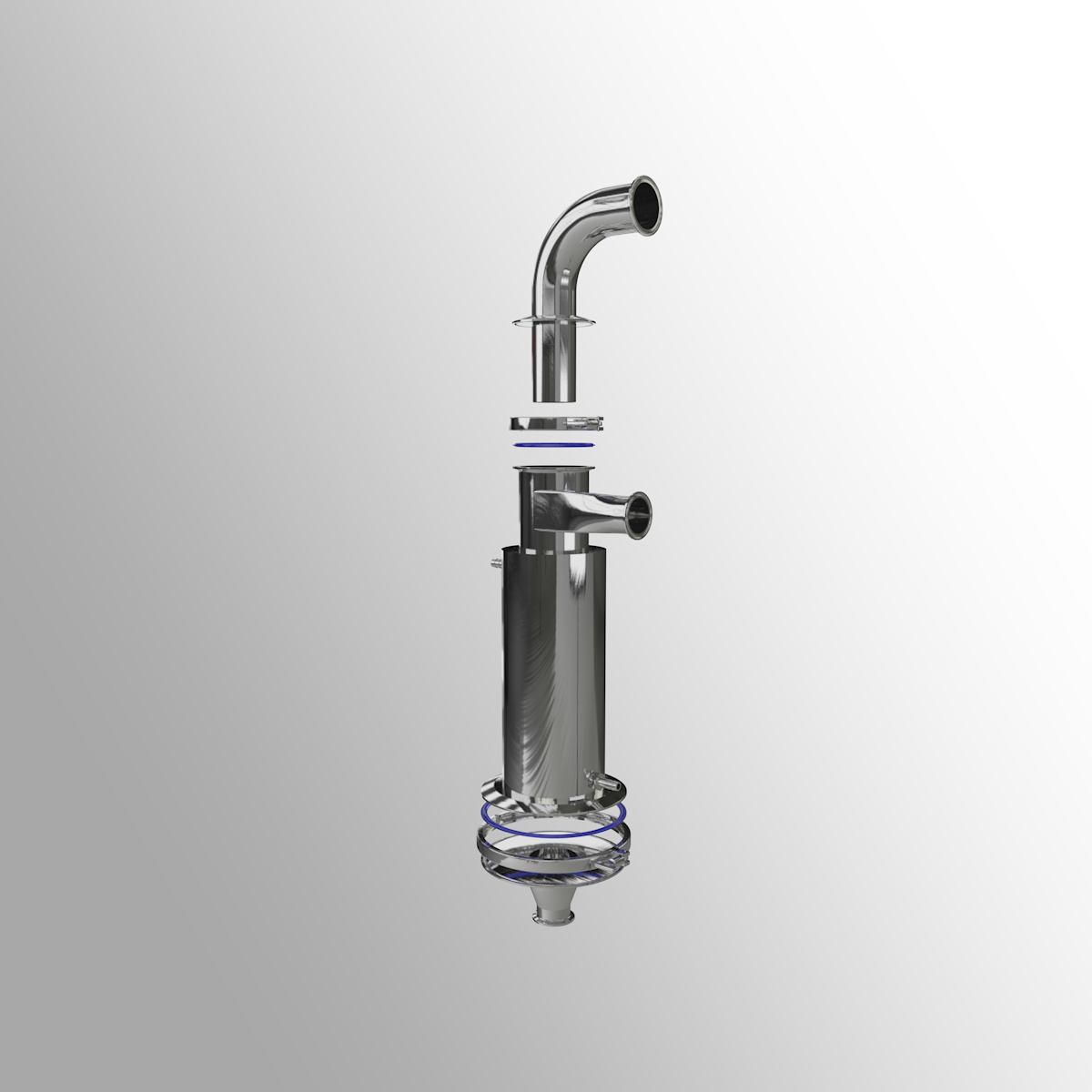

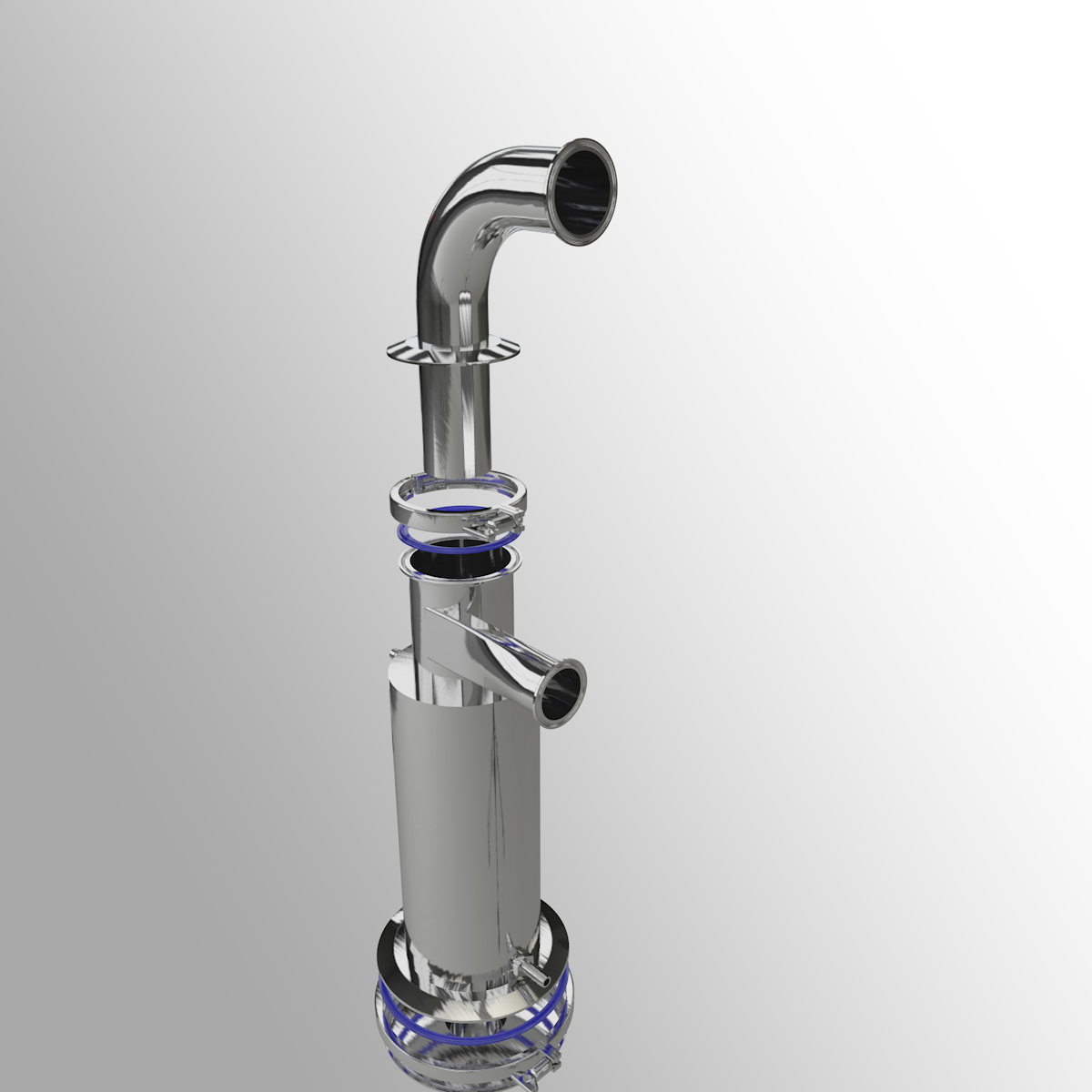

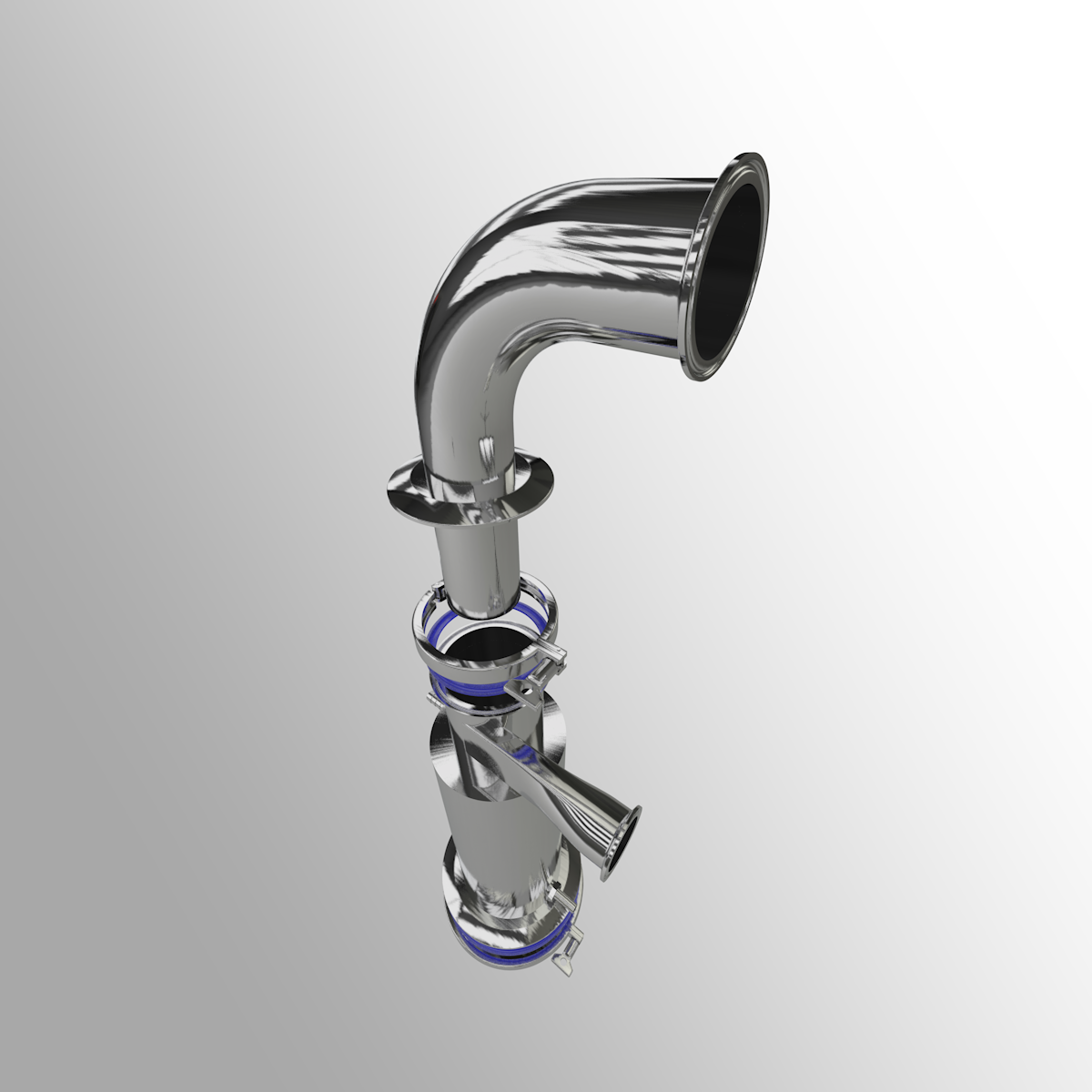

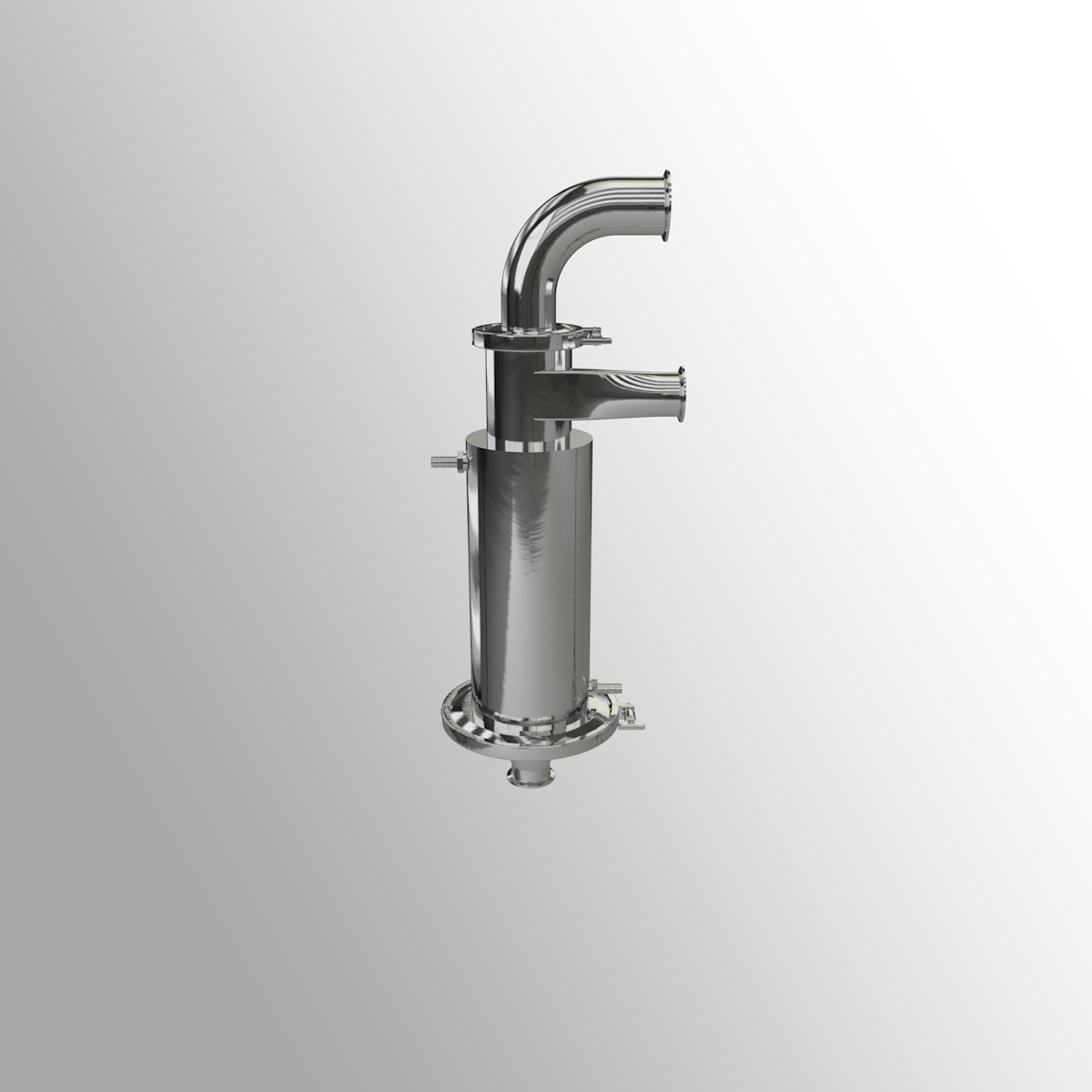

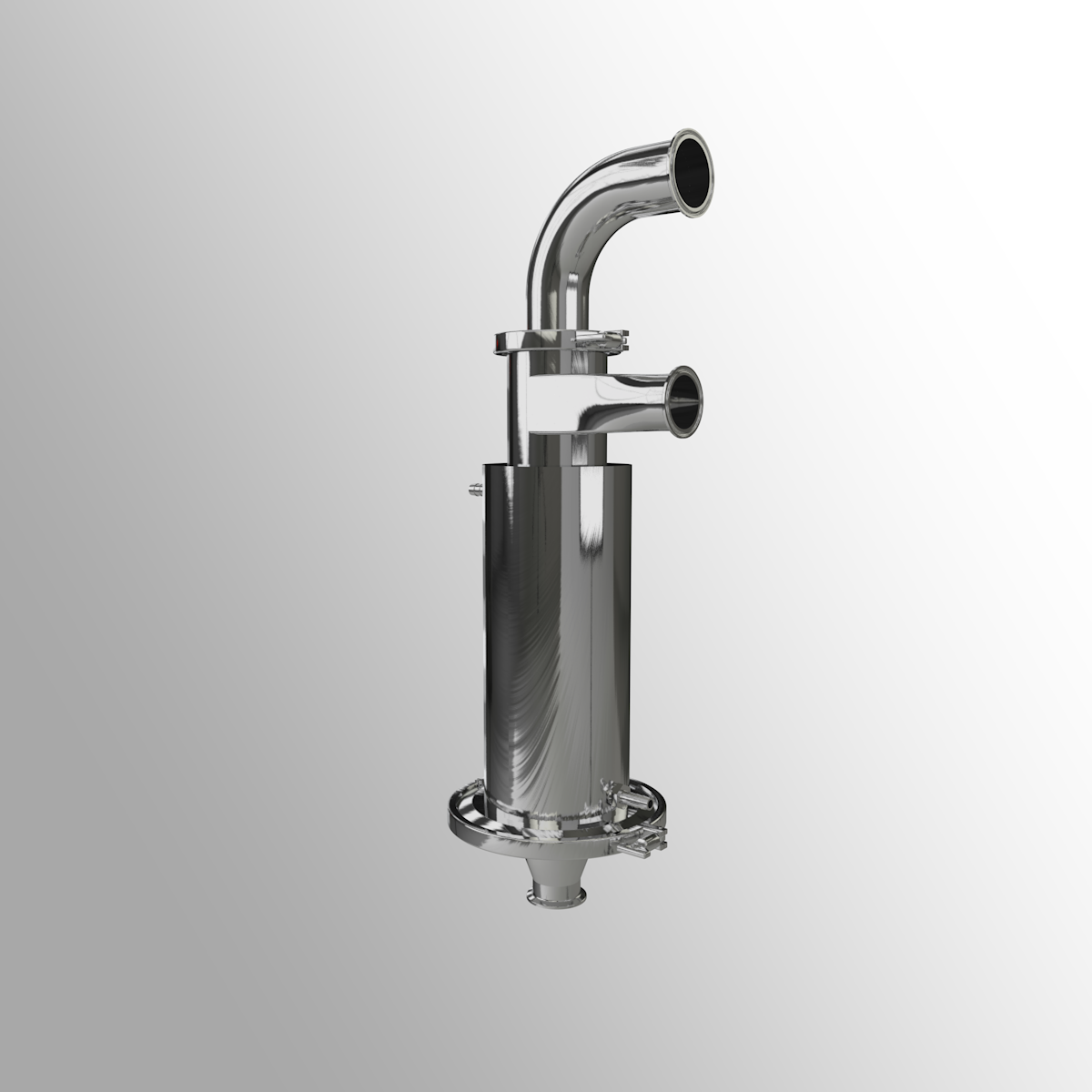

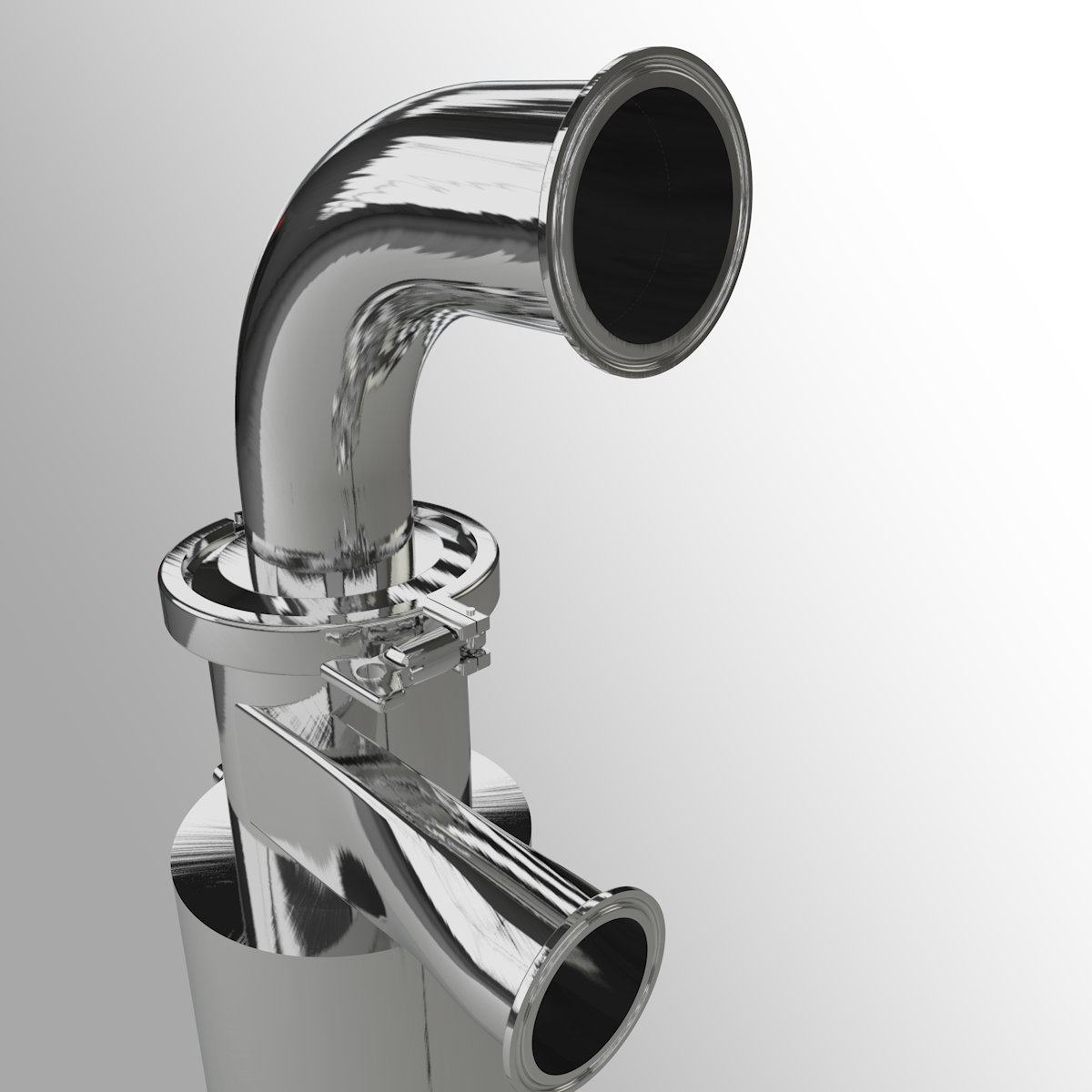

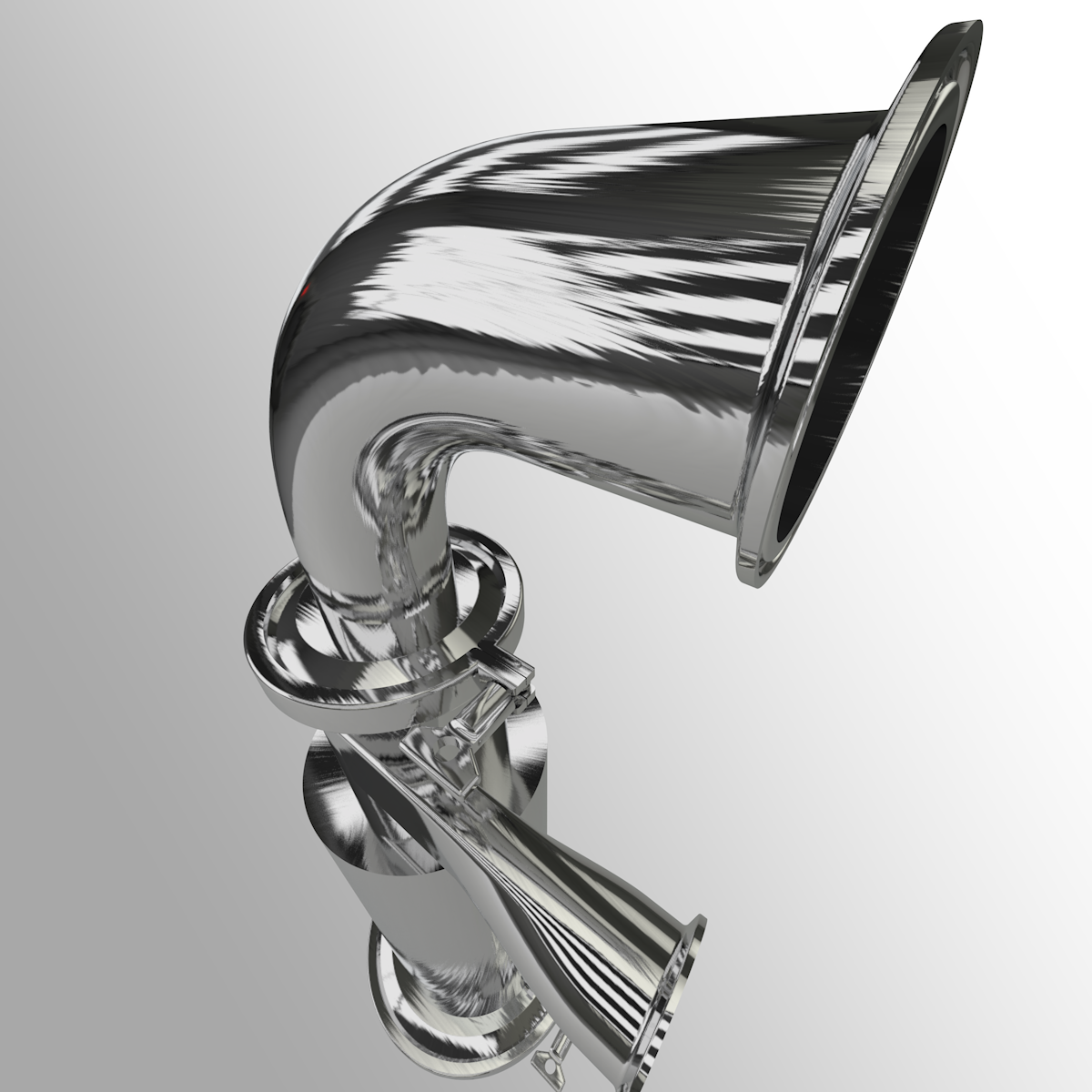

In biomass or emission control applications the flow is usually cooled down before passing through the cyclone. The ALP-HE-XXXX Cyclone acts as a heat exchanger and cyclone separator allowing the separation process to occur while at the same time bring down the fluids temperature. This design reduces complexibility and work space by combing the two.

This cyclone is rated for temperatures as high as 500. When high flow rate or gradual cooling is desired, multiple cyclones can be coupled together as in the ALP-UHE-XXXX Cyclone.

Material: Stainless Steel 316L




Data table

Model ALP-HE-01905 ALP-HE-02540 ALP-HE-03810 ALP-HE-05080 ALP-HE-06350 ALP-HE-10160 ALP-HE-15240
Flow rate m3/hr 3.5 - 50 10 - 70 15 - 100 20 - 150 44 - 300 300 - 600 500 - 1200
CFM 2 - 30 6 - 40 9 - 60 12 - 90 26 - 180 180 - 360 300 - 700
Inflow Tube Diameter mm 19.05 25.04 38.1 50.8 63.5 101.6 152.4
in 3/4" 1" 1.5" 2" 3" 4" 6"
Outflow Tube Diameter mm 25.04 38.1 50.8 63.5 101.6 152.4 203.2
in 1" 1.5" 2" 3" 4" 6" 8"
Inflow - Outflow Water Tube Diameter NSPT - in 1/4" 1/4" 1/2" 1/2" 1/2" 1/2" 1/2"

Sample Industry


Chemical Extraction


Distillation


CBD Oil Extraction
